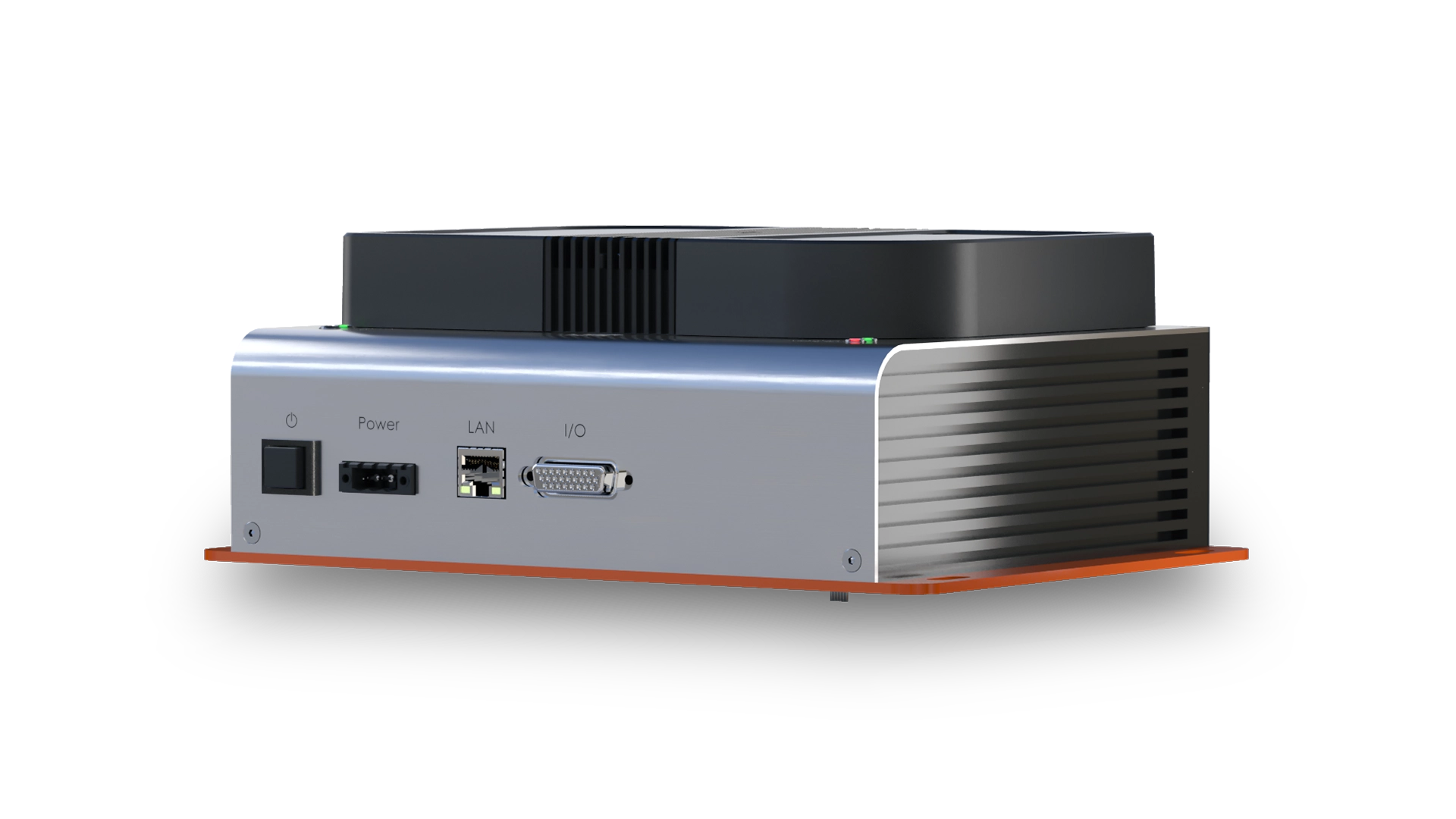

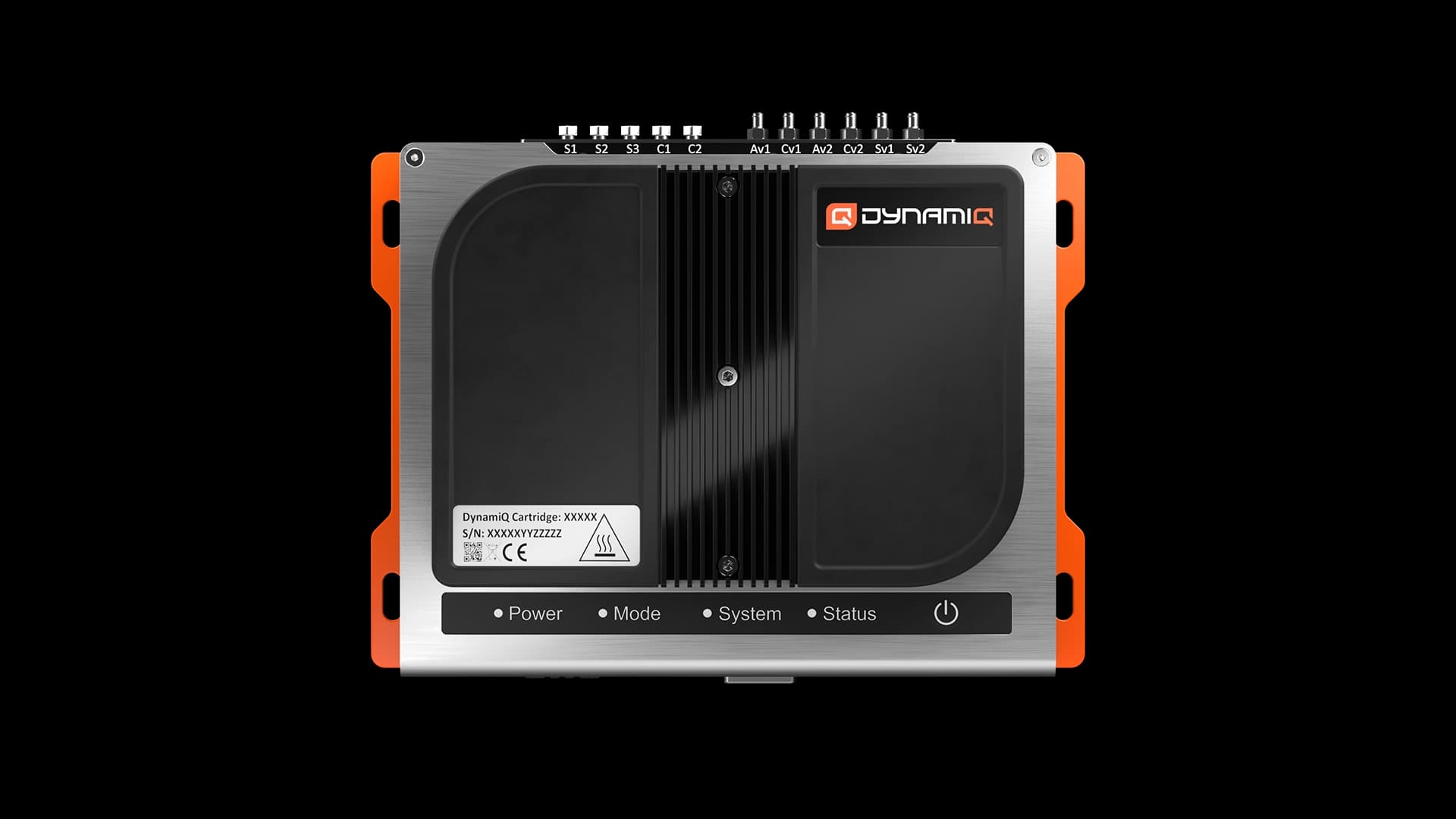

DynamiQ-S

Micro GC module

The micro Gas Chromatograph instrument is designed for continuous gas mixture monitoring in industrial process and factory automation applications. It can be custom configured in hardware and software to optimize the application. The instrument delivers a complete gas composition analysis in just 30 seconds. Utilizing backflush-to-detector technology, it enables simultaneous foreflush and backflush analysis while safeguarding the GC column for enhanced durability and performance.

Contact sales

Benefits

  • Fast
  • Miniature
  • Accurate
  • Low consumption
  • Easy maintenance
No alternate text provided

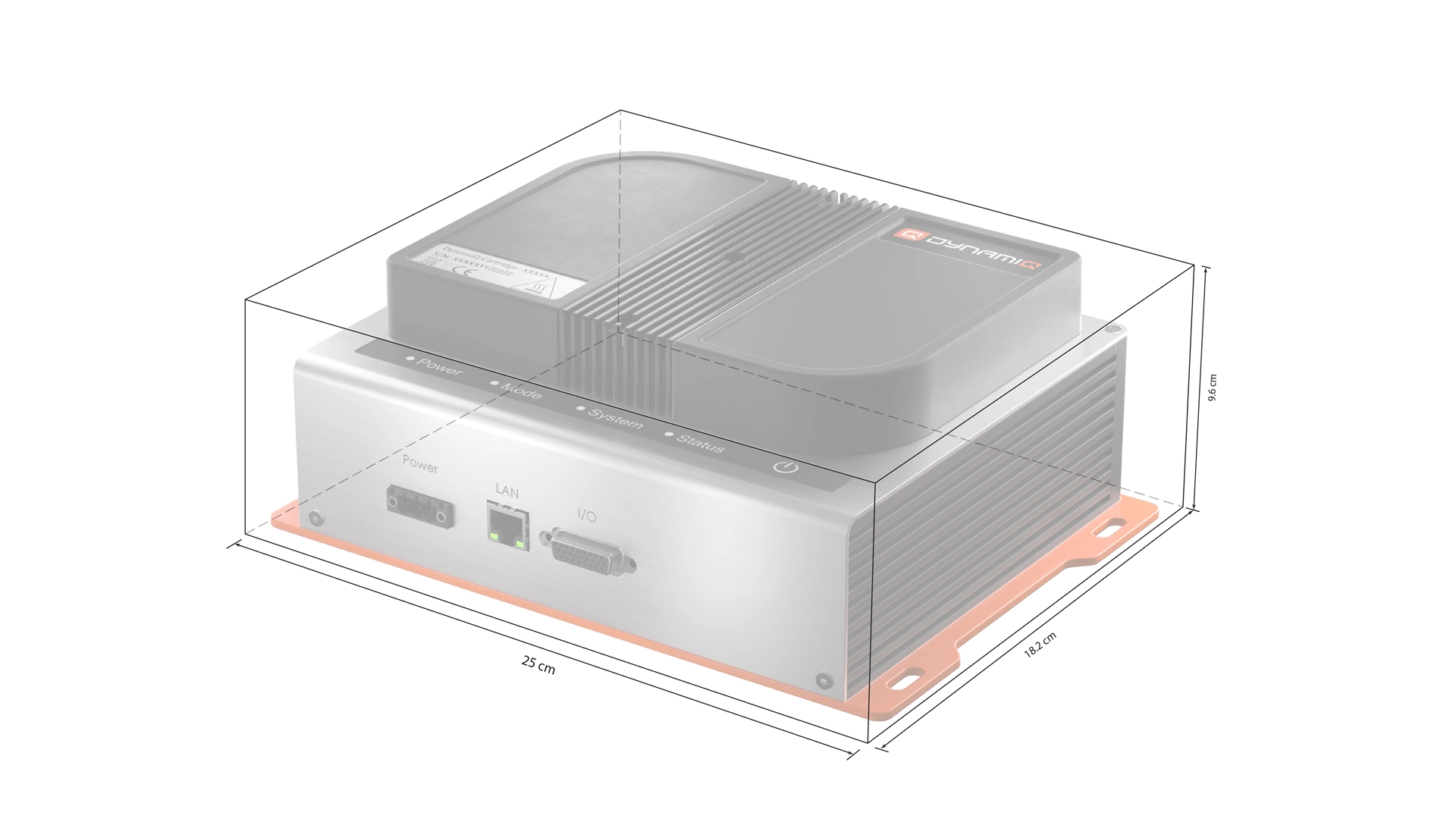

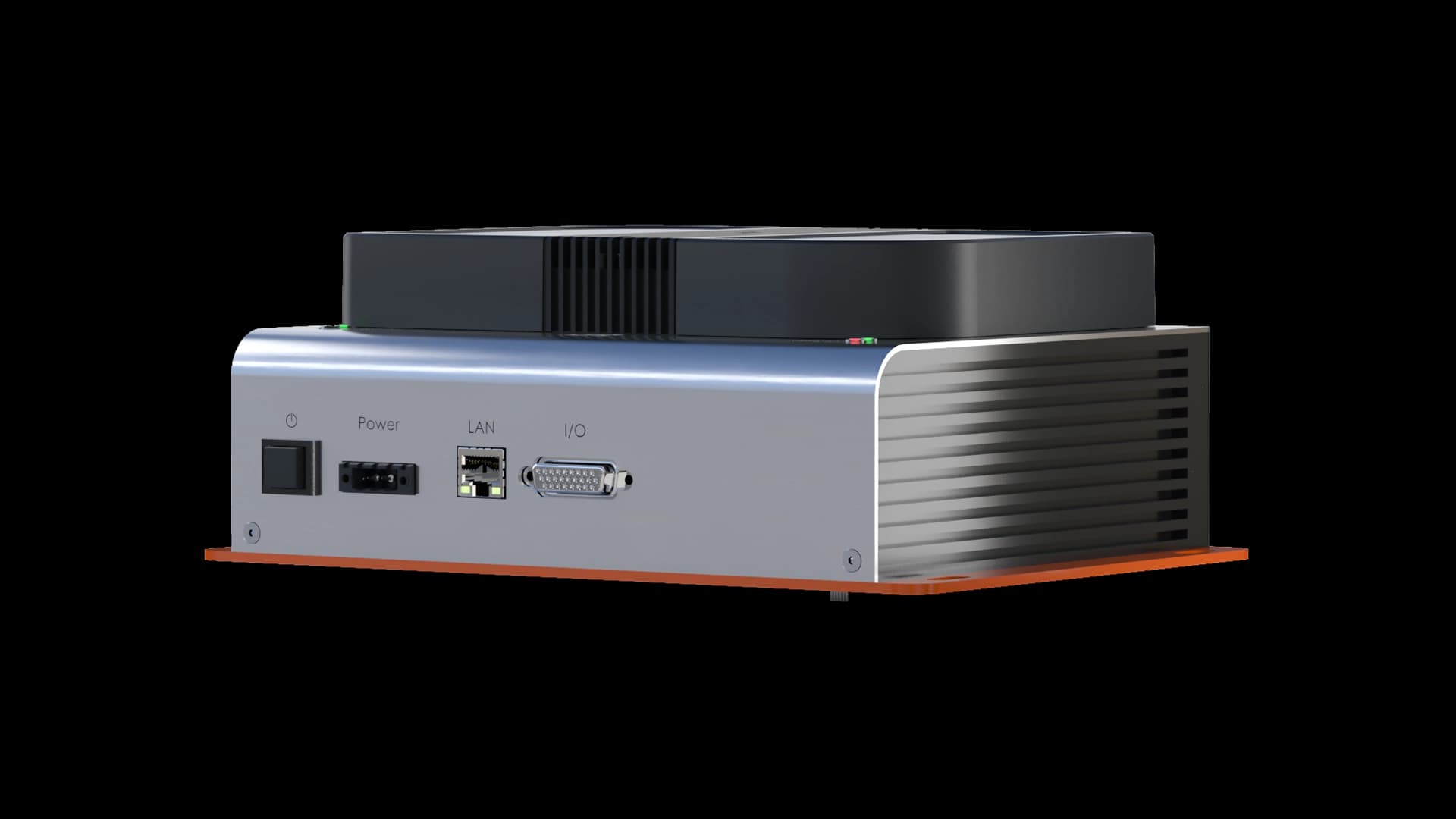

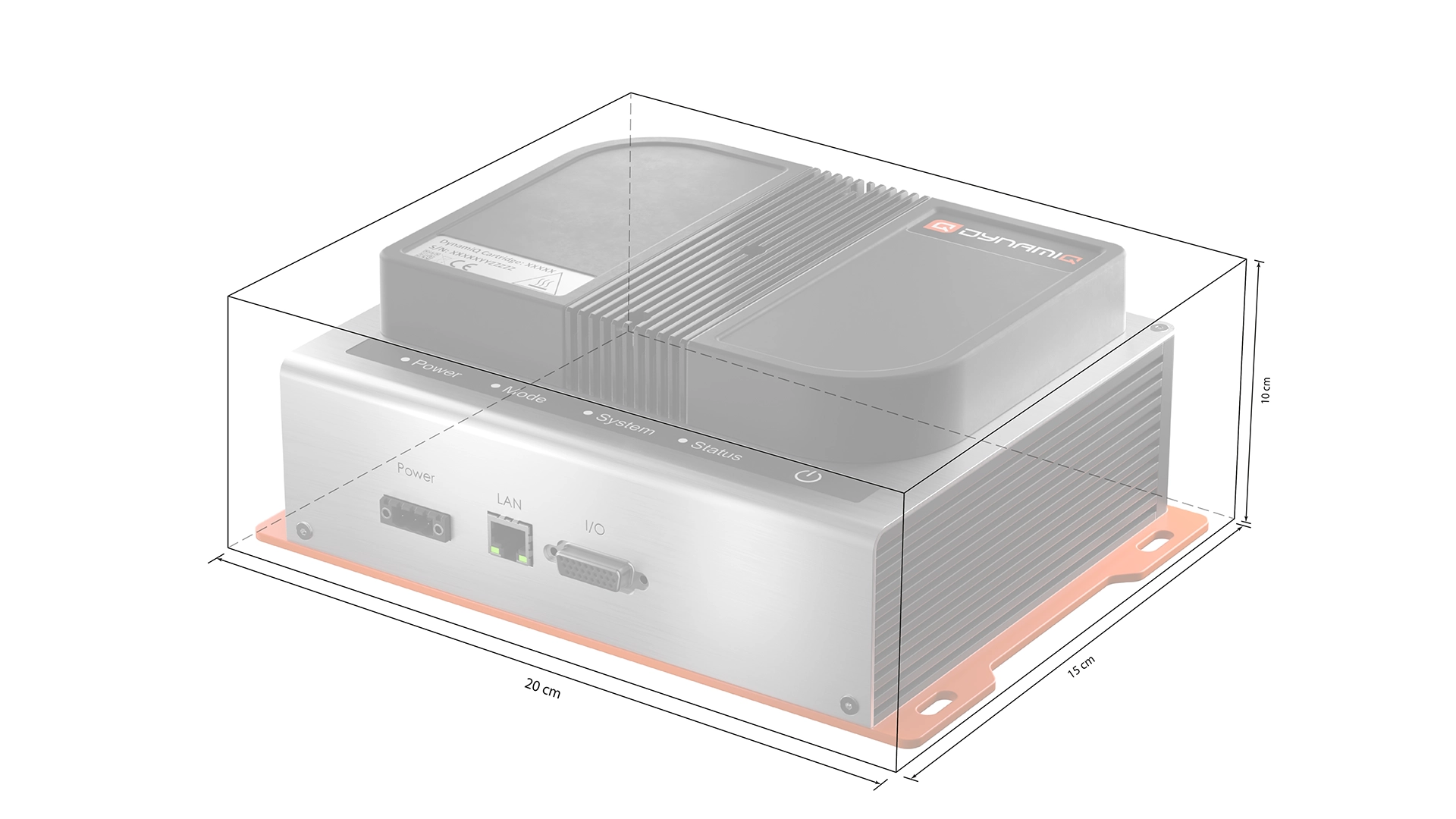

More functionality in less volume

Easy to mount in enclosures. The DynamiQ-S contains a bottom plate with mounting holes for this purpose.

No alternate text provided

Easy maintenance

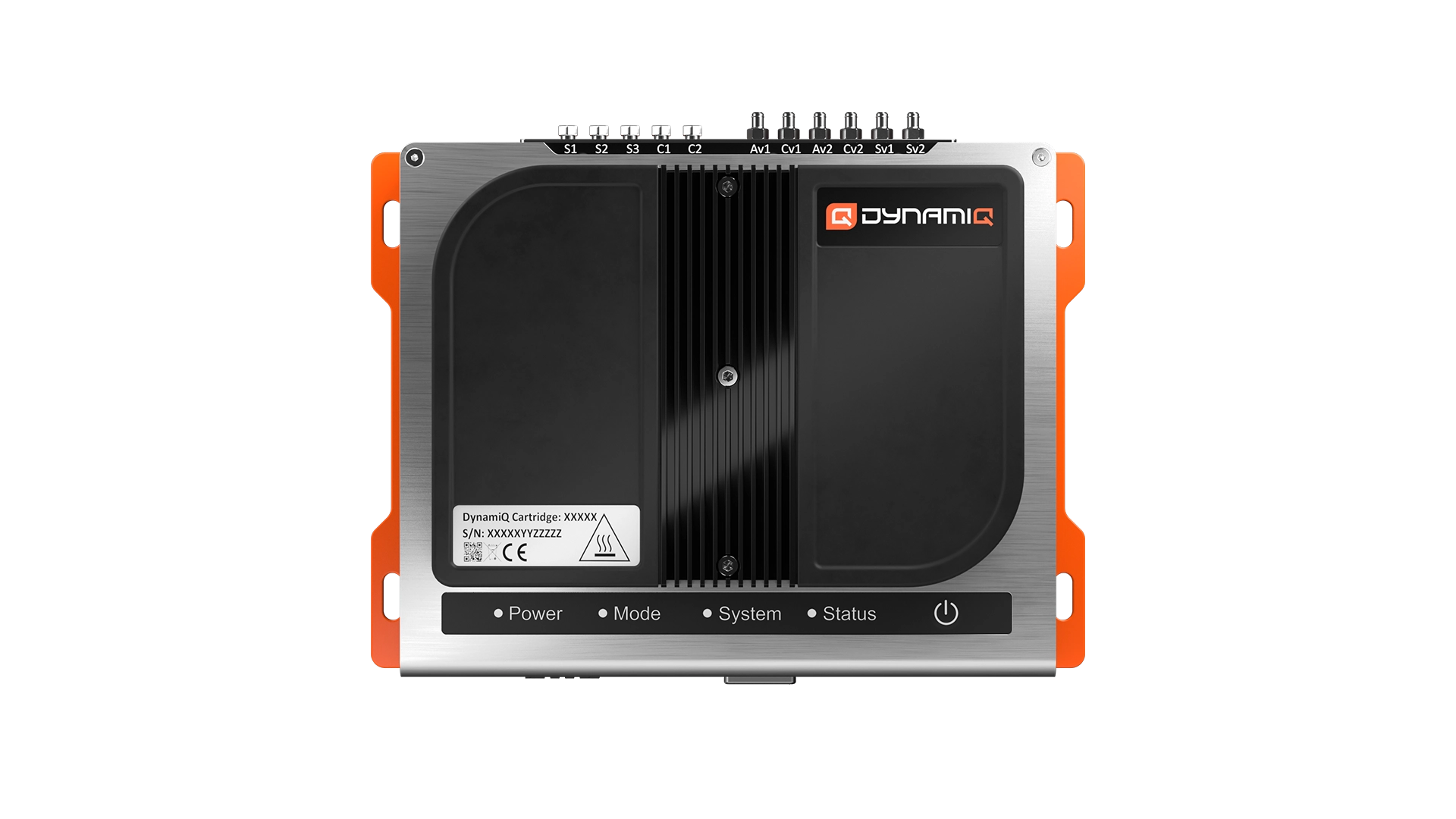

For simple and easy maintenance, each instrument is equipped with an easily replaceable cartridge, containing 1 to 4 GC units with the analytical parts. There are no tubes or capillaries in the instrument which enhances the robustness.

Low consumptions

The DynamiQ-S can be configured for minimal carrier gas usage.



  • Typical 5 ml/minute carrier gas usage per GC unit during analysis
  • Typical 10 W power consumption per GC unit
  • Whole instrument weight < 8 kg
No alternate text provided

Stand-alone or manual operation

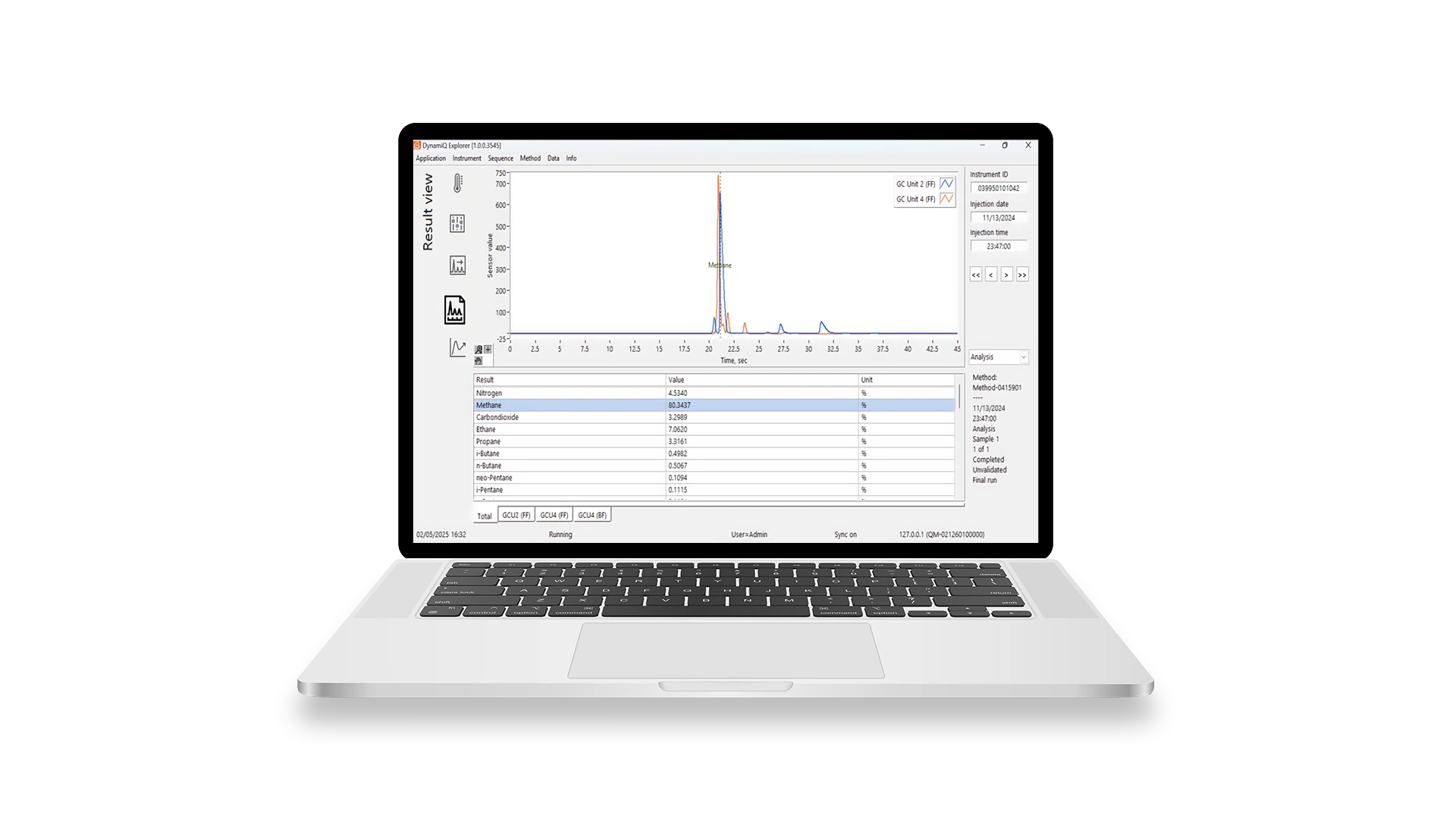

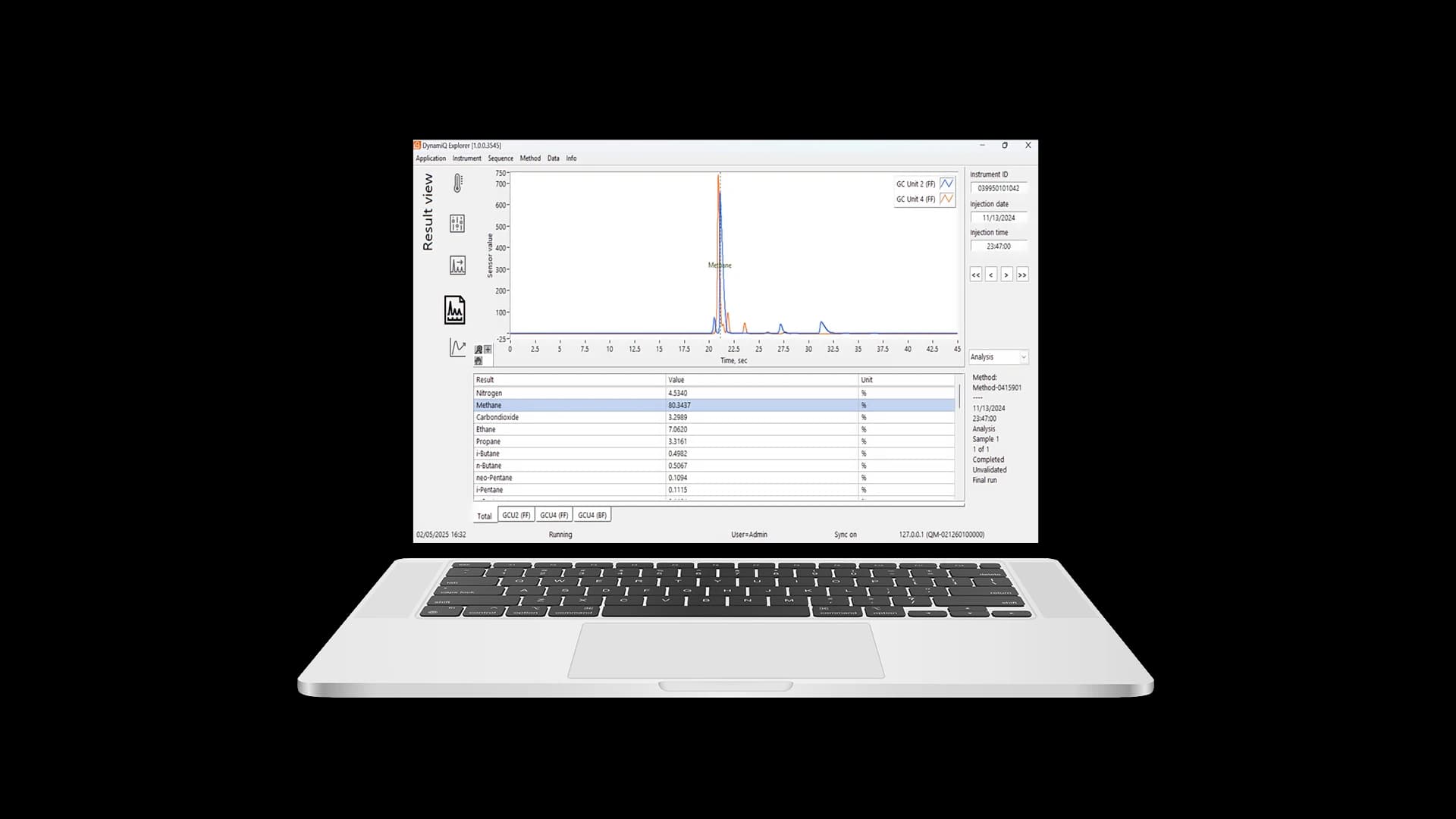

Continuous operation in industrial mode or laboratory mode. The user-friendly PC software, DynamiQ Explorer, provides users with full control.

Want more detailed information?

Download our DynamiQ-S brochure for a deeper understanding.

Want more detailed information?

Download our DynamiQ-S brochure for a deeper understanding.

Download here

    Options

    • 3 inlet ports standard
    • optional more streams external



    The DynamiQ-S is equipped with an integrated 3-stream selector which allows to connect multiple sample gases and/or calibration gases. This integrated stream selector switches between the different inlets, so only 1 stream is let into the analyzer at a time. It is also possible to connect an external multistream selector (Modbus controlled).

    In case of ambient pressure sample gas(es), a sample vacuum pump can be integrated.

    • Options of using helium, argon, nitrogen, hydrogen as a carrier gas
    • Dual carrier in case of multiple GC unit instruments


    Modbus or other protocols over RS-485, RS-232, LAN

    • The DynamiQ display can be connected to DynamiQ-S with the communication cable via supplied adapter
    • Easy and secured viewing of GC results and instrument status
    • Direct GC control

    Discover more

    Explore our videos and learn more about the DynamiQ-S gas chromatograph.

    DynamiQ-S micro gas chromatograph for fast and accurate gas analysis in industrial processes
