Benefits
- Fast
- Miniature
- Accurate
- Low consumption
- Easy maintenance
DynamiQ-R

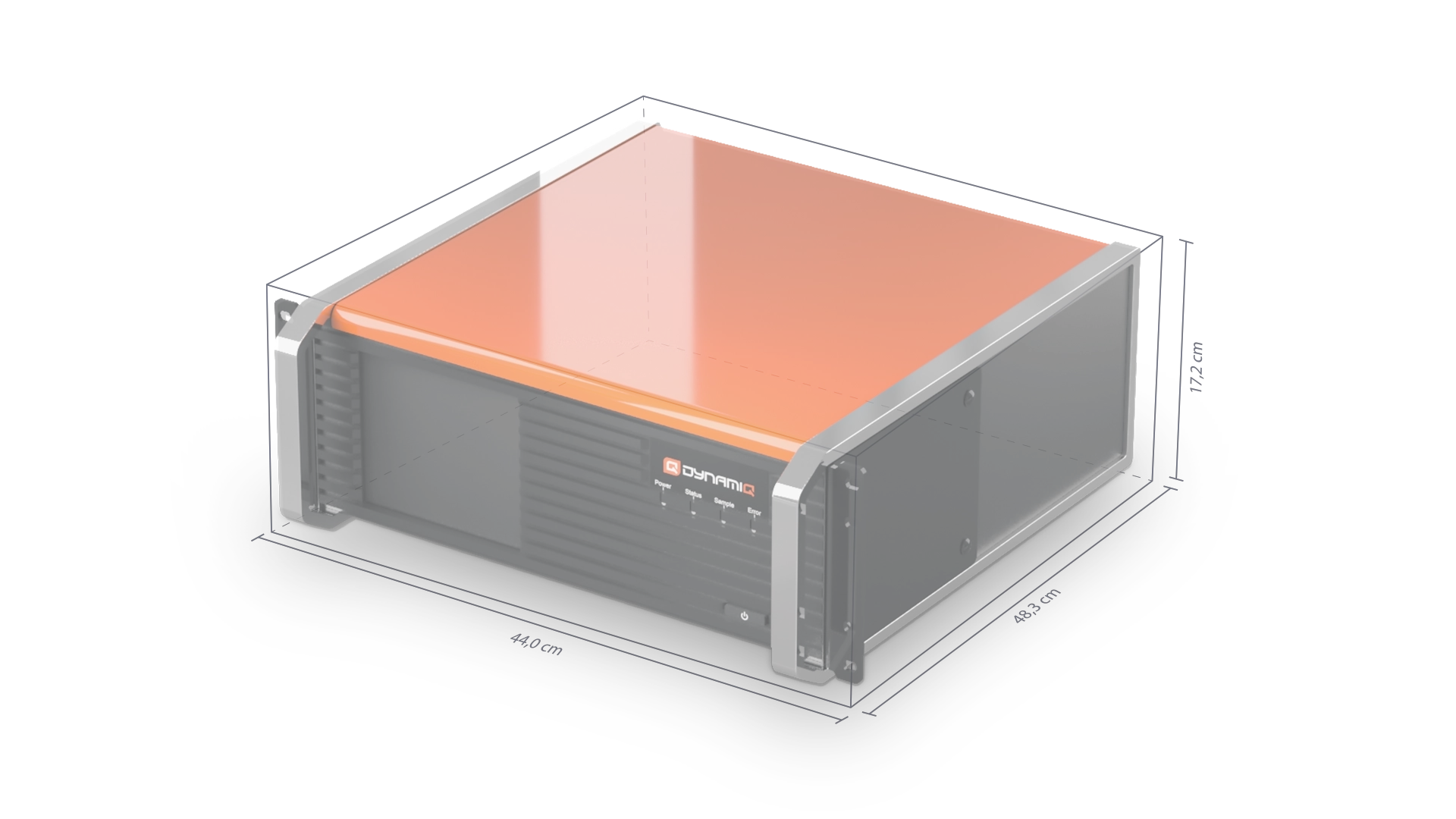

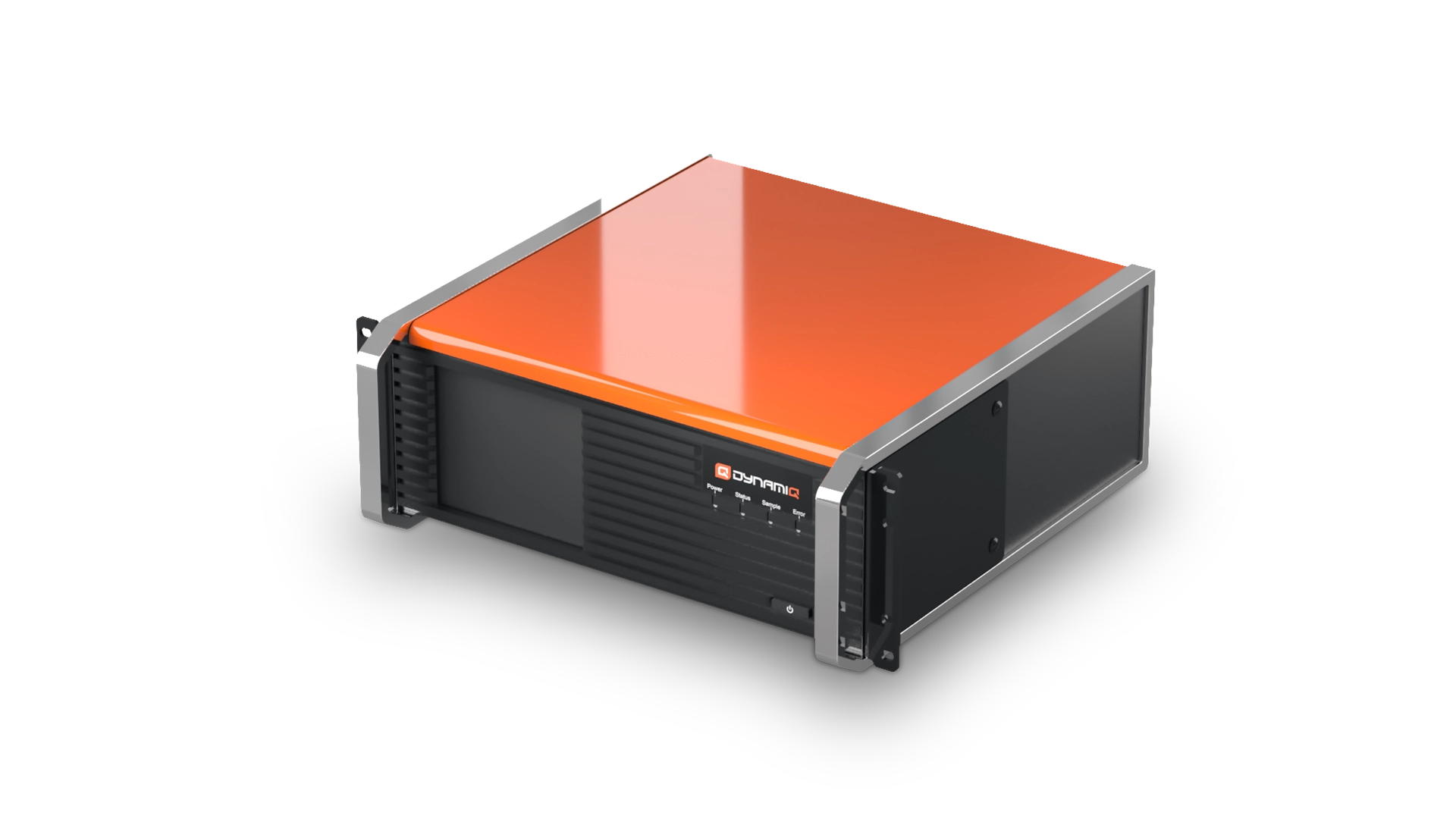

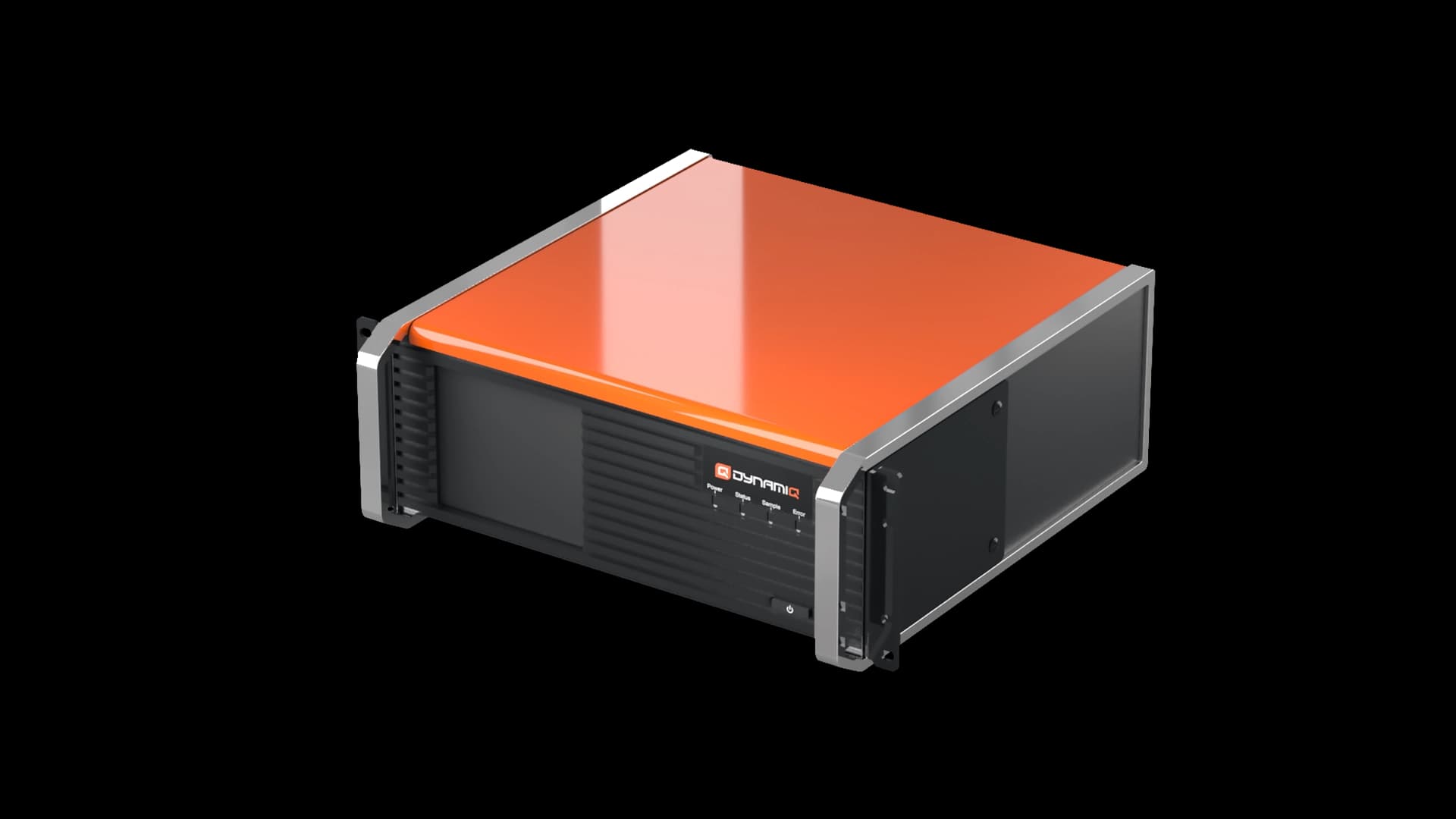

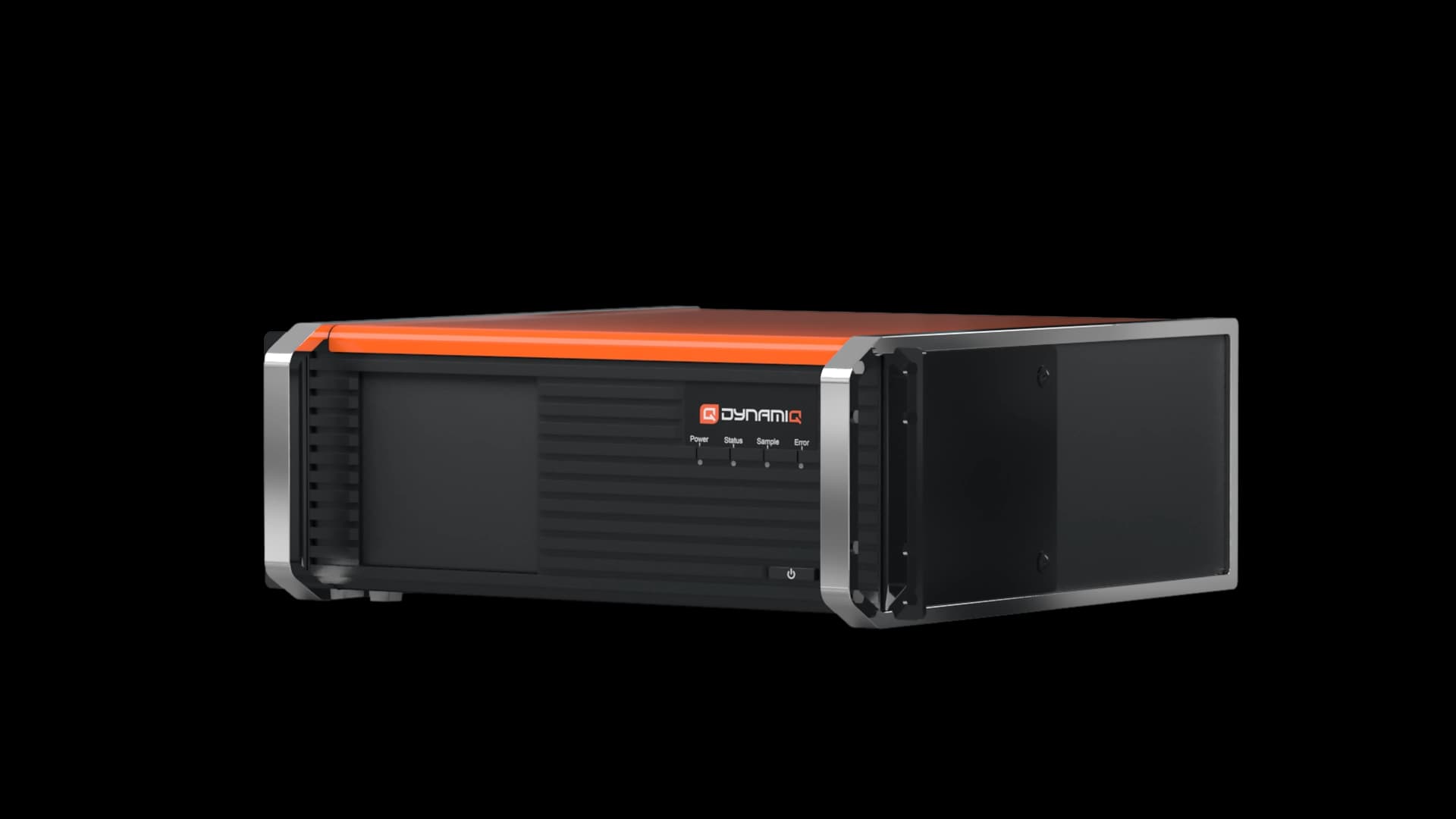

The DynamiQ-R is a custom-specific 19” racked instrument that contains a DynamiQ-S micro GC, which can be applied on request for special projects only. The instrument is designed for continuous gas mixture monitoring in industrial processes and factory automation. The DynamiQ-R has internal space for custom equipment. The miniature instrument delivers a complete gas composition analysis in just 30 seconds. Utilizing backflush-to-detector technology, it enables simultaneous foreflush and backflush analysis while safeguarding the GC column for enhanced durability and performance.
Each instrument is equipped with an easy replaceable cartridge, containing 1 to 4 GC channels with the analytical parts. There are no tubes or capillaries in the instruments which enhances the robustness.

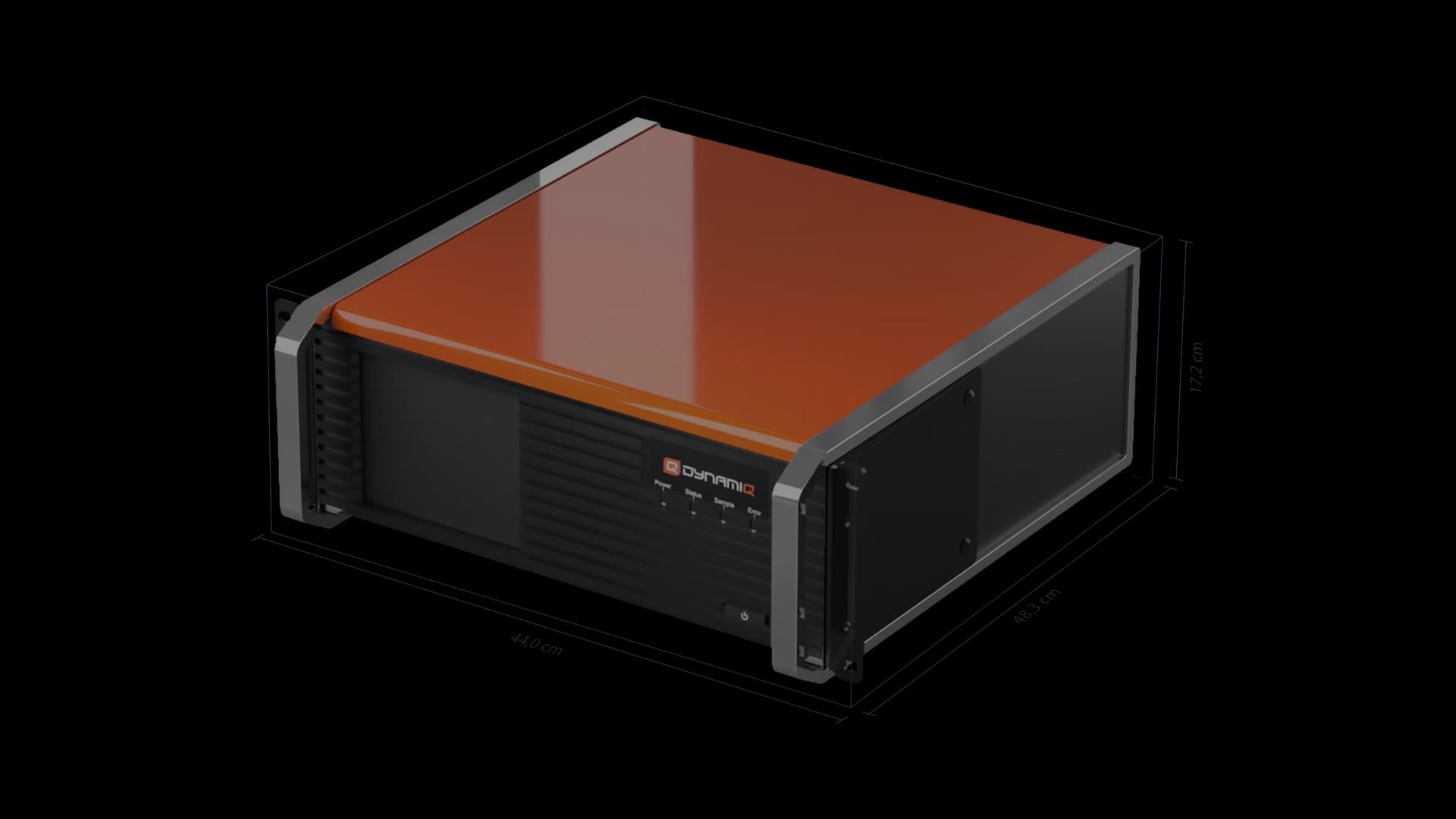

19″ rack version with mounting brackets and rubber fet
The DynamiQ-R has internal space for custom equipment such as pumps, electronics, filters and sensors.
Low consumptions
The DynamiQ-R can be configured for minimal carrier gas usage.
- Typical 5 ml/minute carrier gas usage per channel during analysis
- Typical 10 W power consumption per channel
- Whole instrument weight < 20 kg
Options
- 3 inlet ports standard
- optional more streams external
The DynamiQ-R is equipped with an integrated 3-stream selector which allows to connect multiple sample gases and/or calibration gases. This integrated stream selector switches between the different inlets, so only 1 stream is let into the analyzer at a time. It is also possible to connect an external multistream selector (Modbus controlled).
In case of ambient pressure sample gas(es), a sample vacuum pump can be integrated.
- Options of using helium, argon, nitrogen, hydrogen as a carrier gas
- Dual carrier in case of multiple GC unit instruments
MODBUS or other protocols over RS485, RS232 or TC/IP
