DynamiQ-X
Process GC
The micro gas chromatograph analyzer (process GC) is designed for continuous monitoring of gas mixtures in industrial processes and factory automation. The miniature instrument delivers a complete gas composition analysis in just 30 seconds. Utilizing backflush-to-detector technology, it enables simultaneous foreflush and backflush analysis while safeguarding the GC column for enhanced durability and performance.
Benefits
- Fast
- Miniature
- Accurate
- Low consumption
- Easy maintenance
- Ex (ATEX / IECEx / cQPSus Class1 Div1)
More functionality in less volume

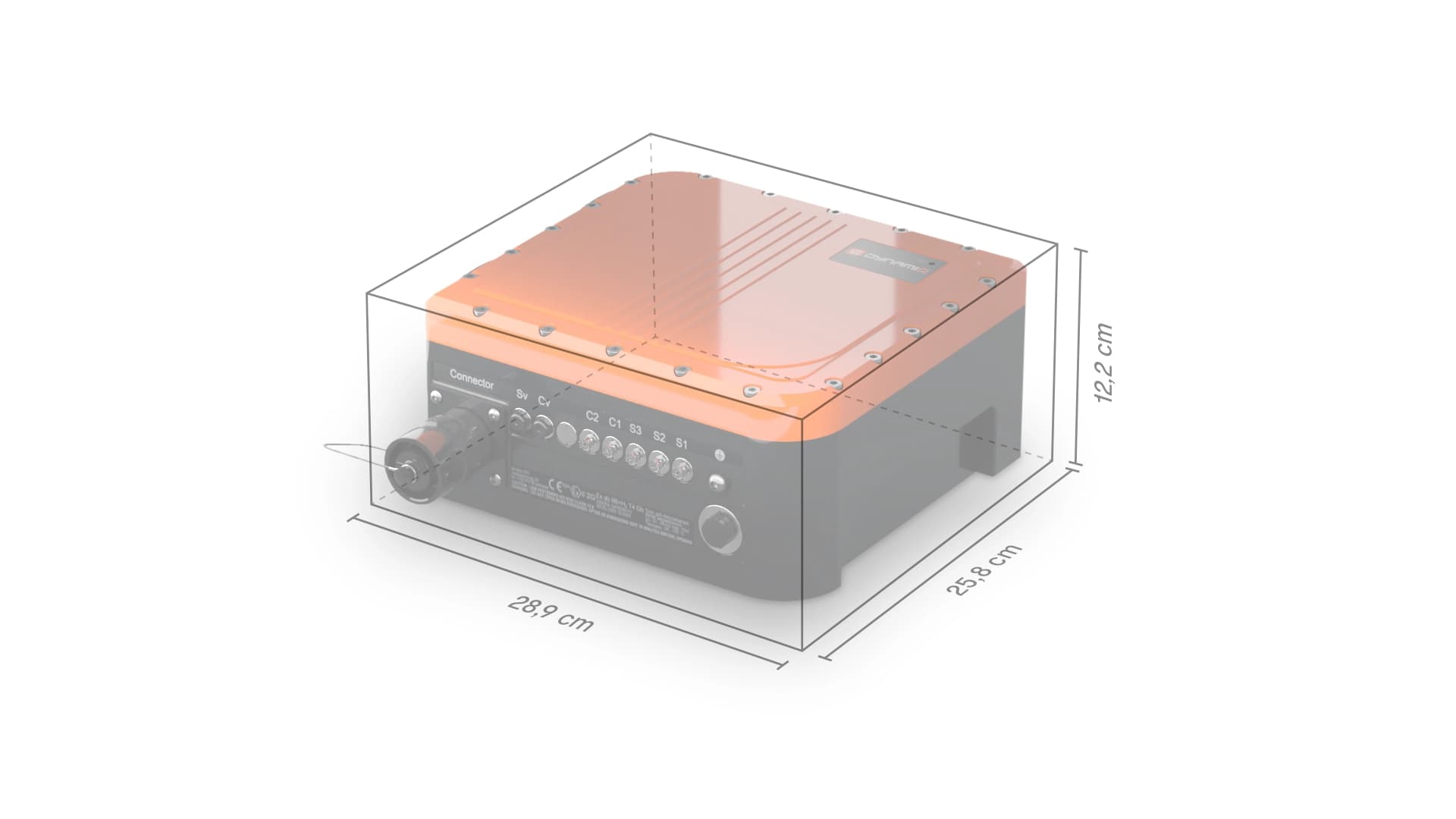

The compact Ex certified DynamiQ-X analyzer can contain up to 4 GC units (column ovens with GC control).
Easy maintenance

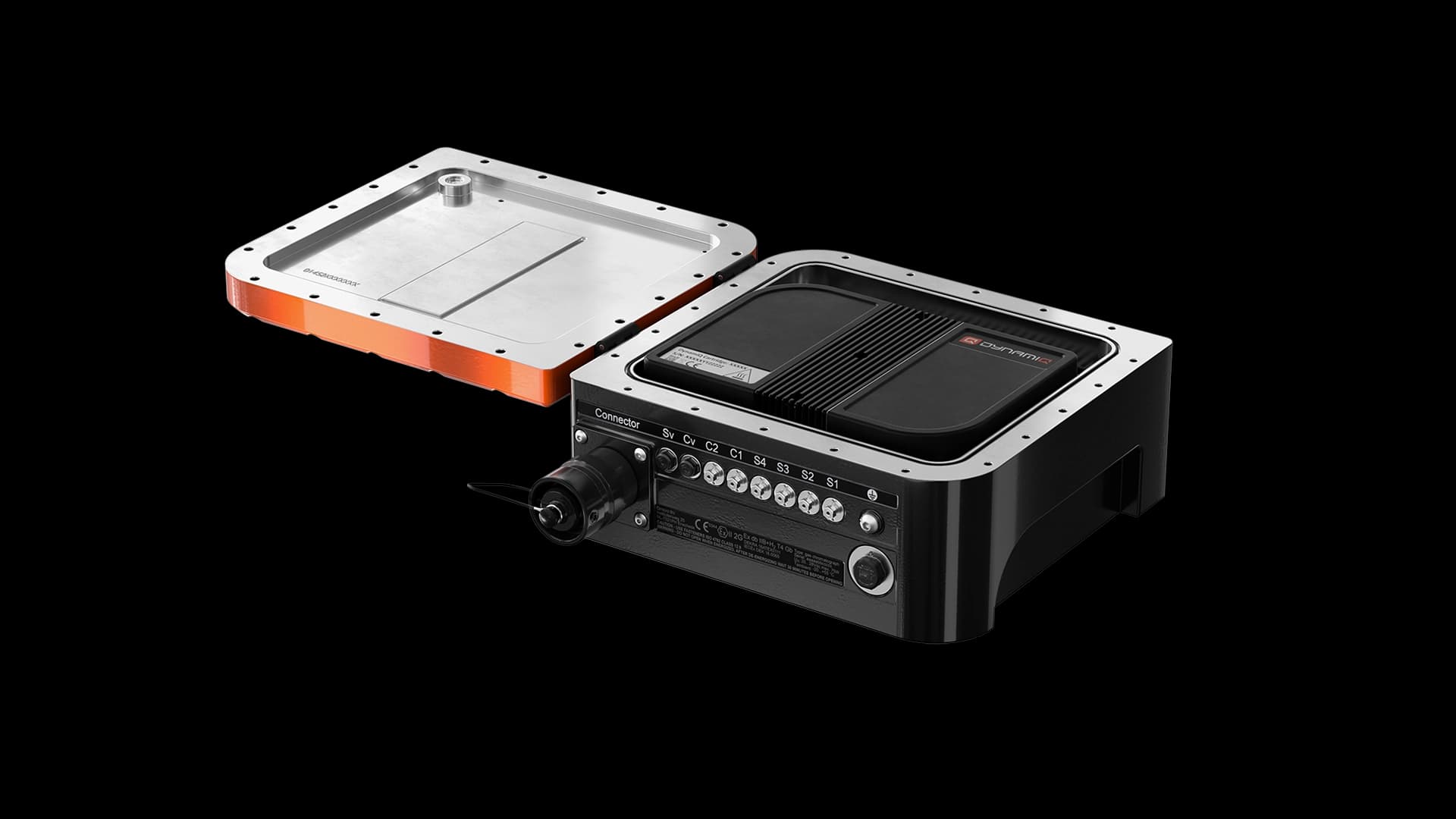

For simple and easy maintenance, each instrument is equipped with an easily replaceable cartridge, containing 1 to 4 GC units with the analytical parts. There are no tubes or capillaries in the instrument which enhances the robustness.
Low consumptions
The DynamiQ-X can be configured for minimal carrier gas usage.
- Typical 5 ml/minute carrier gas usage per GC unit during analysis
- Typical 10 W power consumption per GC unit
- Whole instrument weight < 15 kg
Areas of application
Precise and rapid quantification of hydrocarbons, permanent gases, light aromatics, and sulfur compounds for a diverse array of applications including natural gas, biogas, mudlogging, flare/flue gas, industrial process gas, impurity detection in hydrogen and carbon dioxide stream.
Stand-alone operation

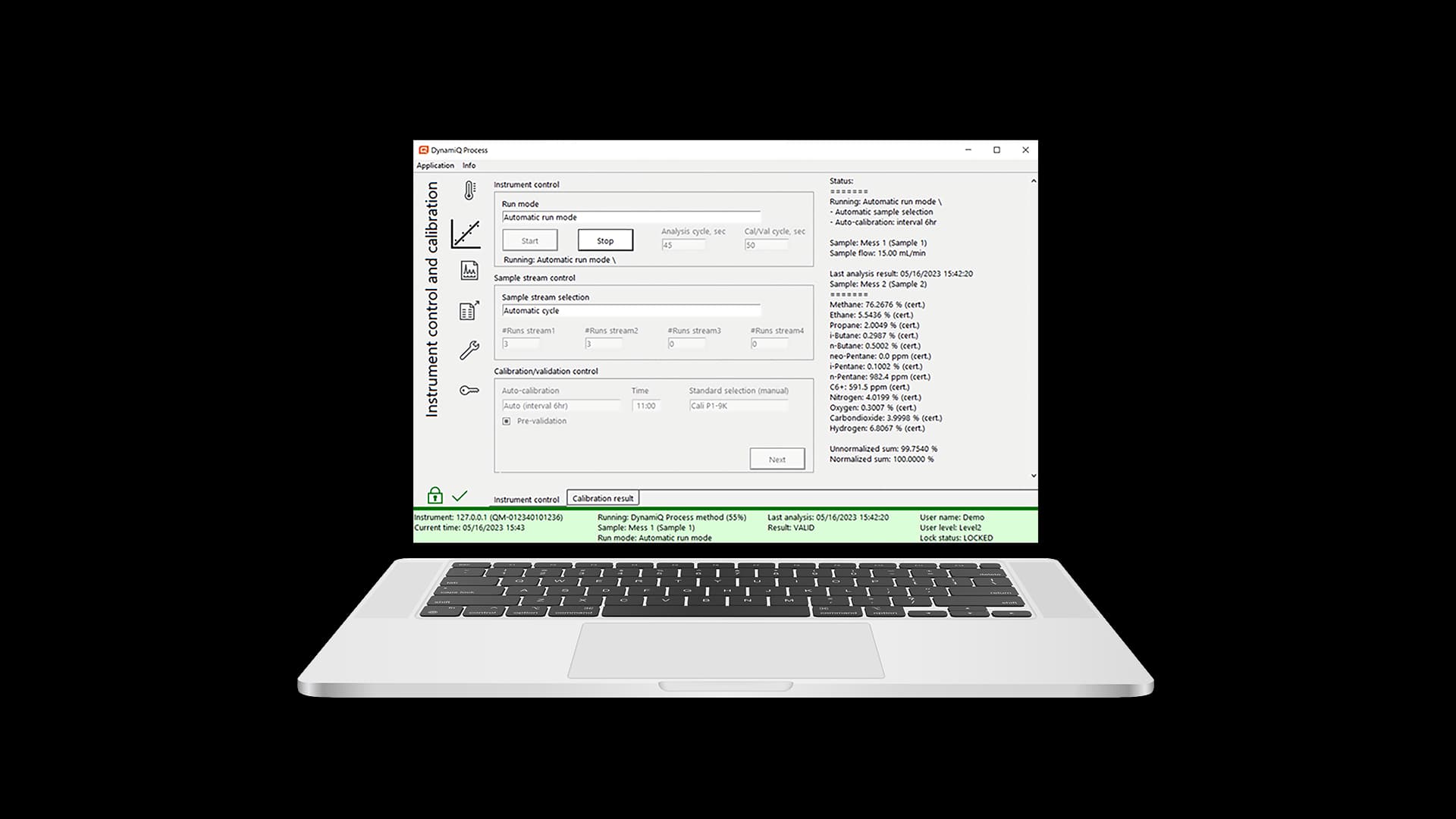

DynamiQ-X autonomously communicates generated data to the outside world. Additionally, there are 2 versions of user-friendly PC software. The DynamiQ Explorer provides users with full control, while the DynamiQ Process simplifies field operations and enhances security.
Want more detailed information?
Download our DynamiQ-X brochure for a deeper understanding.
Want more detailed information?
Download our DynamiQ-X brochure for a deeper understanding.
Download hereFurther downloads
Find all information you need.
Options
- 4 inlet ports standard
- optional more streams external

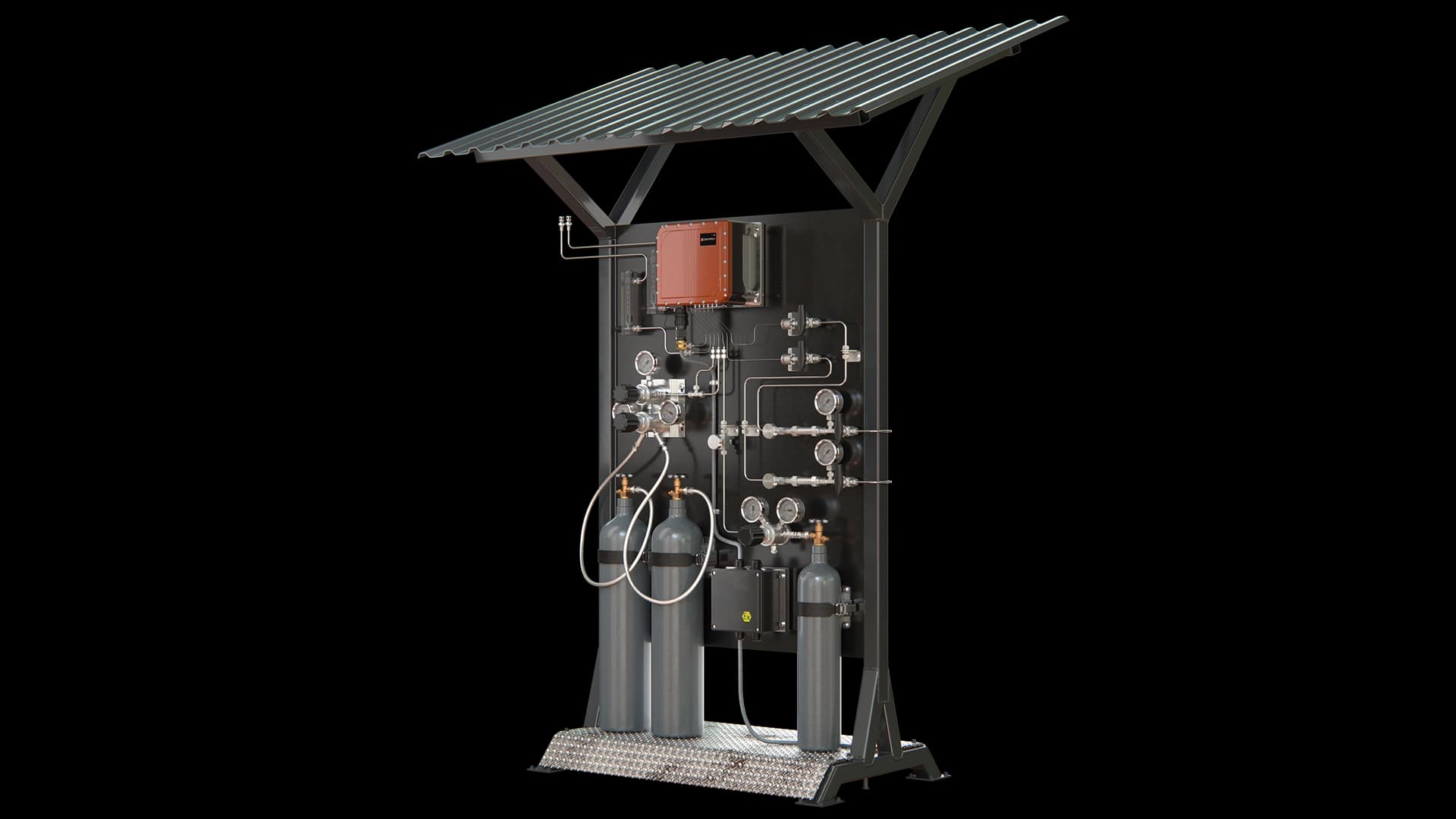

The DynamiQ-X is equipped with an integrated 4-stream selector which allows to connect multiple sample gases and/or calibration gases. This integrated stream selector switches between the different inlets, so only 1 stream is let into the analyzer at a time. It is also possible to connect an external multistream selector (Modbus controlled).
In case of ambient pressure sample gas(es), a sample vacuum pump can be integrated.
- Options of using helium, argon, nitrogen, hydrogen as a carrier gas
- Dual carrier in case of multiple GC unit instruments
Modbus or other protocols over RS-485, RS-232, LAN.
- The DynamiQ display can be connected to any Ex e-electrical junction box with the communication cable, which can be placed in the same explosive hazardous zones as the DynamiQ-X
- Immediate analysis of GC results
- Immediate access to GC control in Ex operation areas
